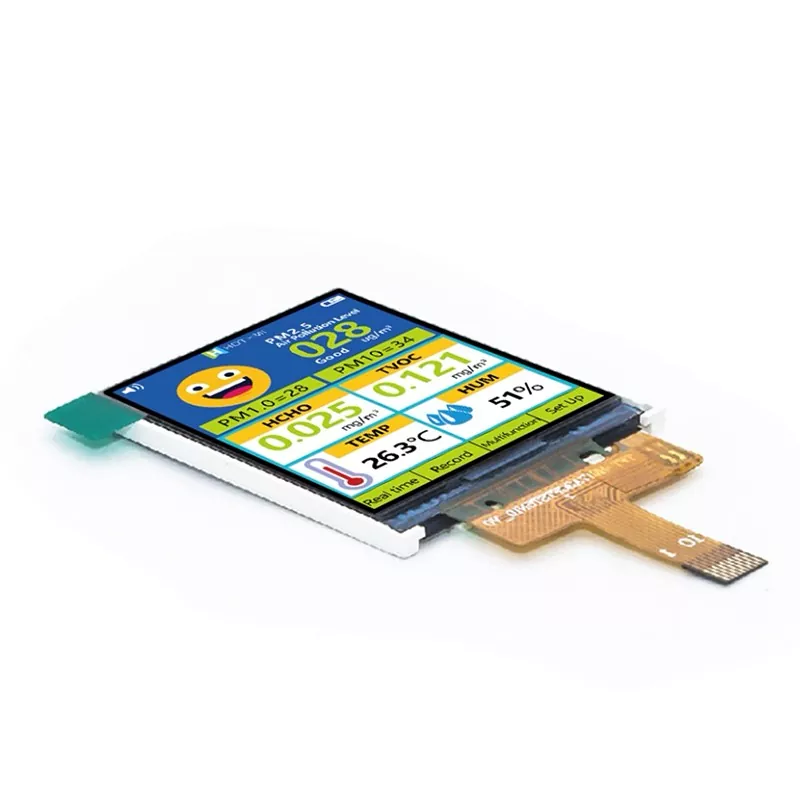

1.77 inch 128x160 MCU Tft moduli

Vicronix est professional tft moduli manufacturer et elit in Sinis. Nos fuisse in agro XVIII annis. Et developed pluribus exempla usque. Hoc Vicronix 1.77 inch 128x160 MCU tft modulus features CXXVIII × CLX elementa HD resolutio, sustinet 262k color profundum, instructa cum Ili9163v cum VIII-bit Mu9163v cum parallel / Serial communicationis modos. Hoc Vicronix 1.77inch TFT moduli obsequitur cum Rads environmental signa ut tutum application usu.

Model:VXT177SSI-02

Mitte Inquisitionem PDF Download

depictio producti

Quid est competitive commoda Vicronix 1.77 inch 128x160 MCU Tft moduli in competitive situ de Tft Module Manufacturers? It features a 128(RGB)×160-pixel resolution with 262K colors and a 300:1 contrast ratio, and this RoHS-compliant module produces crisp visuals with wide viewing angles (55°at 12 o'clock, 65°at 3/6/9 o'clock). Besides, a 96-hour thermal cycling and humidity test ensures perfect operation in extreme temperatures from -20°C to +70°C (-30°C to +80°C storage). In addition, quod habet altum claritas CCXX CD / M², et eius backlight vita est usque ad 30.000 ad 50,000 horas, ensuring quod potest esse ad claritatem et horas in usum in diversis lucis. Et maxime momenti est quod possumus producendum customized products in occursum necessitates nostrae customers.

Hoc 34.70 x 46.70 X 2.60mm pacto mole TFT moduli est idoneam ad medicinae magna machinas, automotive instrumentum racemos, industriae imperium tabulata, portable ioot terminals, et dolor in domum interfaces.

Generalis specifications

Lcd parameter

Item	Contenta	Unitas	Nota
LCD Type	Tft	-
COLOR	262k
PRAECIPIUM	XII	Horam
Operating temperatus	-20 ~ + LXX	℃
Storage temperatus	-30 ~ LXXX +	℃
Active Area (W × h)	28.03x35	mm
Numerum dots	128x160	dots
Moderator	Ili9163v	-
Vox copia voltage	2.8	V

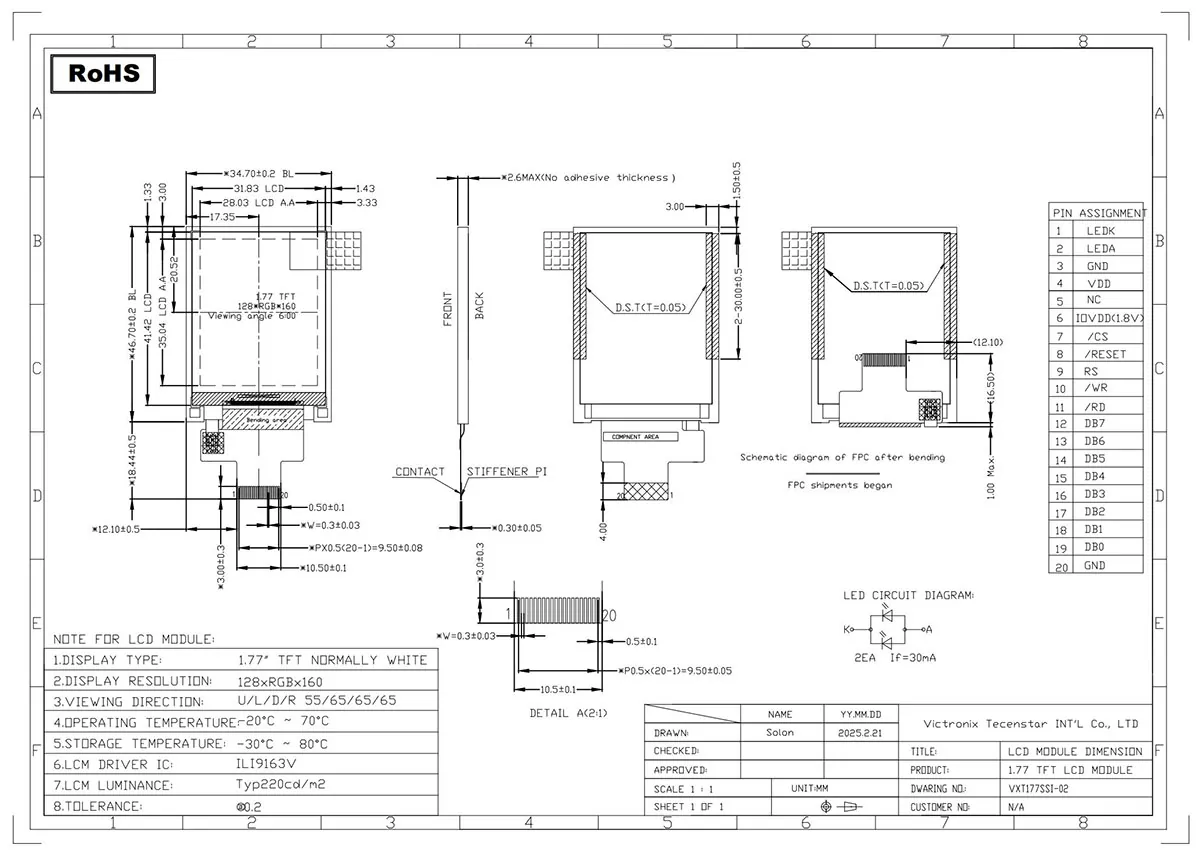

Dimensions	34.70x46.70X22.60	mm
Backlight	2x1-LEDs (White)	PCs
Interface	8bit MCU	-
