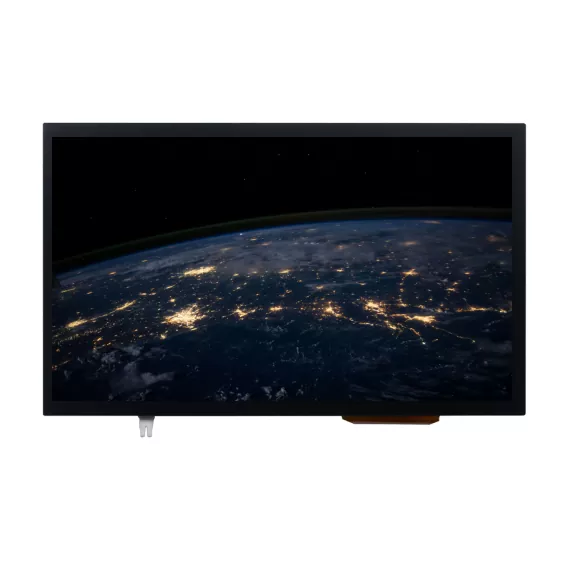

10,1 inch MXXIV × DC IPS TFT Module cum CTP

Hoc Vicronix 10,1 inch MXXIV × DC IPS TFT modulus cum CTP est summus perficientur 10.1 inch tft LCD moduli machinatum est postulat embedded applications. Featuring a rigidas MXXIV x DC resolutio et 16,7 decies centena colores, hoc moduli liberat eximia visual claritatem cum typical claritas CDXX CDXX / M², DCCC, I contra Ratio, et late LXXX ° anguli in omnibus directiones. Ut professional manufacturer et elit de Tft modules in Sina, Vicronix 10,1 inch Tft moduli est plene obsequium Rads environmental signa, ensuring superioris applicationem. Nos offerre a customized servitium in occursum necessitates nostras customers.

Model:VXT101BAHA-01C

Mitte Inquisitionem PDF Download

depictio producti

TFT LCD est genus liquid crystal ostentationem quod utilitas tenuis-film transistor technology ad augendae imaginem qualitas, et non habet numerosis applications in cotidianam vitam. Ut professional tft moduli manufacturer et elit in Sina, quod facit Vicronix 10,1 inch MXXIV × DC IPS Tft moduli cum CTP diversis ab aliis manufacturers? Uno modo, quod offert typical claritas CDXX CD / M², wide LXXX ° viewing anguli in omnibus directiones, et contra rationem DCCC: I, ensuring optimum readability ex variis angulis. Secundo, quod integrates a backlight unitas adhibendis XXXIX albus ededit cum typicam vitae 30,000 ad 50,000 horas (ad L% initial claritas), ensuring patet visibilis in omnibus lucentis conditionibus. Praeterea, quod sustinet 6/8 bit LVDs interface cum Hx8282a11 + hx8696a controller et robust robust V-punctum Capacitive Touch panel cum GT928 CTP Controller. In addition, is transit duram environmental temptationis, comprehendo scelerisque inpulsa (-30 ° c ↔ + LXXX C ° C.), Umor repono (LX ° C / XC% range non potest agere,% C ° F) ° C ° F.

Hoc 10.1 inch TFT Display per Vicronix est communiter in altilium-Lorem cogitationes, digital signage, dolor electronics, imperium tabulata, vestibulum apparatu propono, medicinae cogitationes, et in.

Generalis specifications

Item	Contenta	Unitas	Nota
LCD Type	Tft	-
COLOR	16.7m
PRAECIPIUM	Cunctis	Horam
Operating temperatus	-20 ~ + LXX	℃
Storage temperatus	-30 ~ LXXX +	℃
Module magnitudine	10,1	inch
Active Area (W × h)	222.72x125.28	mm
Numerum dots	1024x600	dots
Moderator	Hx8282a11 + hx8696a	-
Vox copia voltage	3.3	V

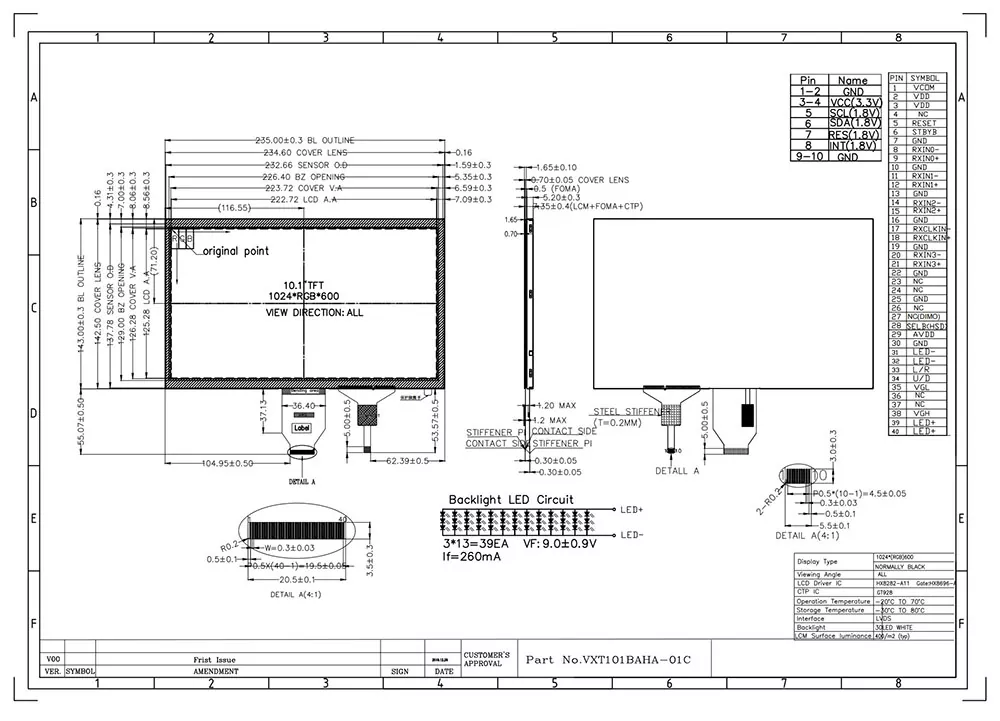

Dimensions	235,00x143.00x7.35	mm
Backlight	3x13-LEDs (White)	PCs
Pondus	---	g
Interface	6/8 Bit LVDs	-

CTP Parameter

Item	Contenta	Unitas	Nota
Summa Location	234.6x142.5	mm
Cover View area	223,72 (h) x126.28v)	mm
CTP resolutio	1024x600	dots
Interface modus	Jic	-
Tangere modus	V humanum digitos multi-tactus	-
Superficies	> = 6h	-
Dialacritas	> = LXXXV%	-
Accuratio	Entre +/- 1.5mm, ora +/- 2.5mm	mm
CTP Controller	GT928	-
Vox copia voltage	3.3	V
