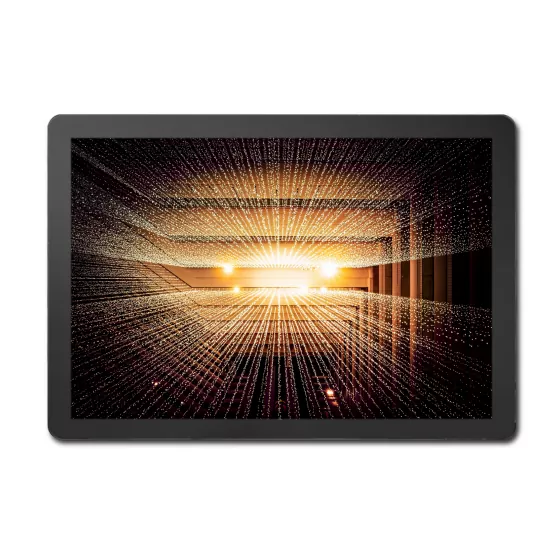

10,1 inch MXXIV × DC LVDs TFT Module cum CTP

Vicronix est professional tft moduli manufacturer et elit secundum in Sinis. Cum XVIII annos experientia in agro, nos developed a varietate exempla. Insuper ad nostram vexillum products, nos quoque offerre customized servicia in occursum nostra customers 'specifica necessitates. Hoc 10,1 inch MXXIV × DC LVDs TFD Module cum CTP est summus qualitas 10,1 inch tft ostentationem moduli machinatum pro industriae, medicinae et embedded applications. Combining altum optical perficientur, capacitive tactus functionality, et extenditur reliability, liberat eximia claritate et diuturnitatem in extrema operating conditionibus.

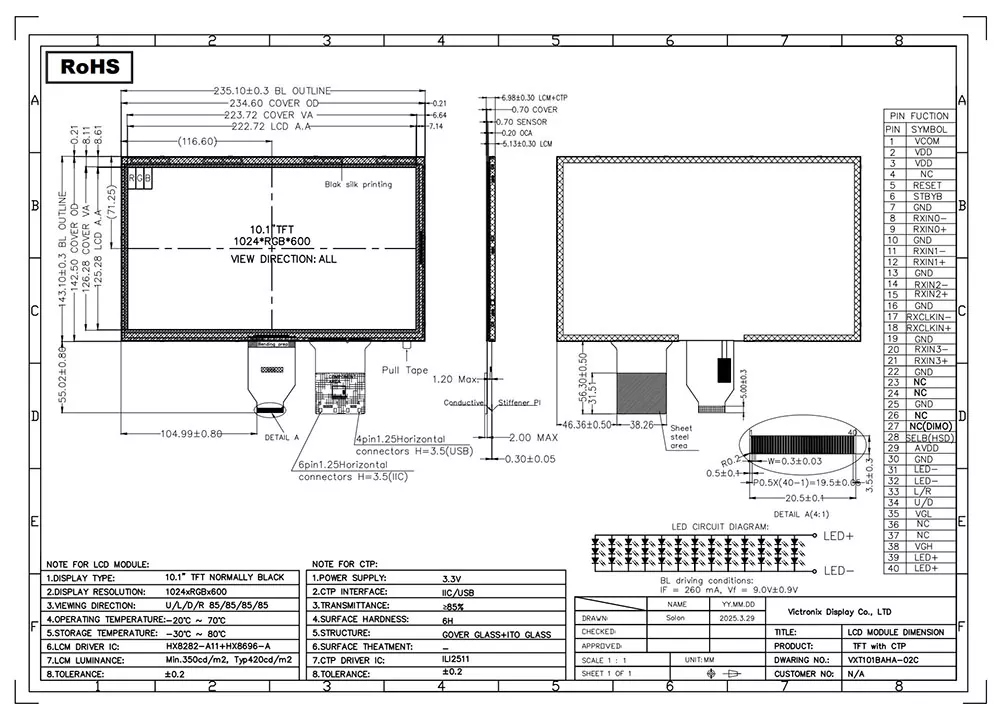

Model:VXT101BAHA-02C

Mitte Inquisitionem PDF Download

depictio producti

In aetate intelligentiae, in Tft moduli enables nobis ad praesens requiritur notitia uisum. Et qualis est TFT modulus habet discrimine impulsum in eius application. Quid commoda Vicronix 10.1 inch MXXIV × DC LVDs TFT Module cum CTP? In primo, CDXX eius CDXX / M² claritas, DCCC: I Contra Ratio, an LXXX-gradu viewing angulus in omnibus directiones, et LXXV% uniformitatem, vividi. Secundo, quod sustinet VI / VIII-bit LVDs interface cum Hx8282a11 + Hx8696a Controller et robust V-Point Capacitive Touch Panel cum Ili2511 CTP Controller. Praeterea, quod features a III × XIII-DUXERIT albus backlight cum lifespan de 30,000 ad 50,000 horas, cursus eius diu terminus usability in variis industriae applications. In addition, quod obsequitur cum ROHS signa et feliciter transit rigorous Reliability probat, comprehendo scelerisque inpulsa, humiditas et ESD praesidio usque ad 8kv aeris et 4kv contactus. Hoc productum operates efficiently in extrema temperaturis vndique a -20 ° C ad + LXX ° C et potest sustinere gravibus repono conditionibus ex -30 ° C ad LXXX ° C.

Hoc 10.1 inch Tft moduli ex Vicronix est disposito industriae HMIS, medicinae cogitationes, portable diagnostic apparatu, velit kiosks, transportation systems, et automation imperium tabulata.

Generalis specifications

Item	Contenta	Unitas	Nota
LCD Type	Tft	-
COLOR	16.7m
PRAECIPIUM	Cunctis	Horam
Operating temperatus	-20 ~ + LXX	℃
Storage temperatus	-30 ~ LXXX +	℃
Module magnitudine	10.1	inch
Active Area (W × h)	222.72x125.28	mm
Numerum dots	1024x600	dots
Moderator	Hx8282a11 + hx8696a	-
Vox copia voltage	3.3	V
Dimensions	235.00x143.006.98	mm
Backlight	3x13-LEDs (White)	PCs
Pondus	---	g
Interface	6/8 Bit LVDs	-

CTP Parameter

Item	Contenta	Unitas	Nota
Summa Location	235.10X143.10	mm
Cover View area	223,72 (h) x126.28v)	mm
CTP resolutio	1024x600	dots
Interface modus	IIC / USB	-
Tangere modus	V humanum digitos multi-tactus	-
Mitteret	> = 6h	-
Dialacritas	> = LXXXV%	-
Accuratio	Entre +/- 1.5mm, ora +/- 2.5mm	mm
CTP Controller	Ui2511	-
Vox copia voltage	3,3 (IIC) /5.0(USb)	V
