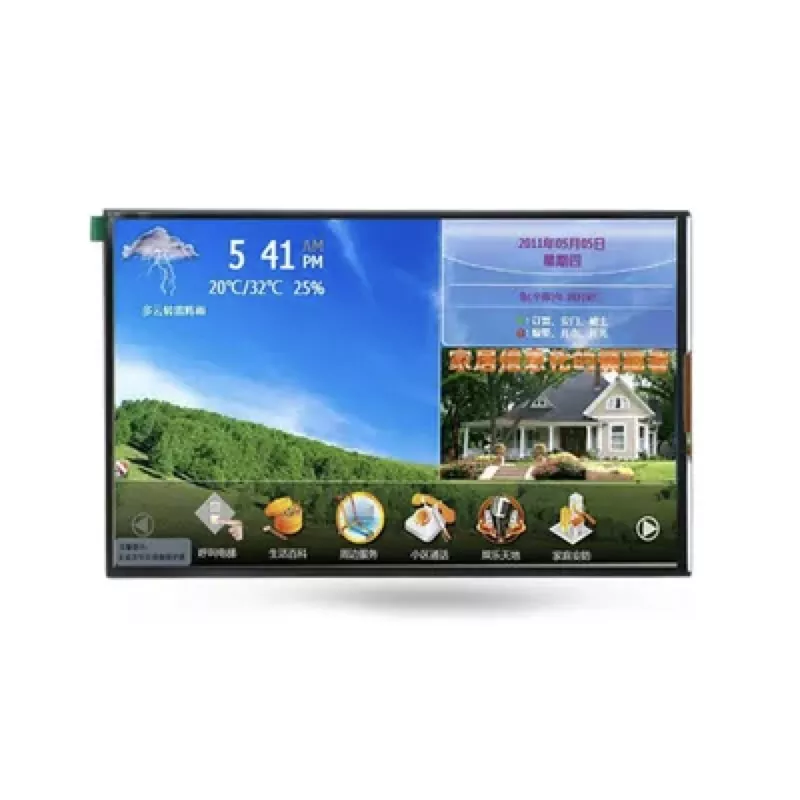

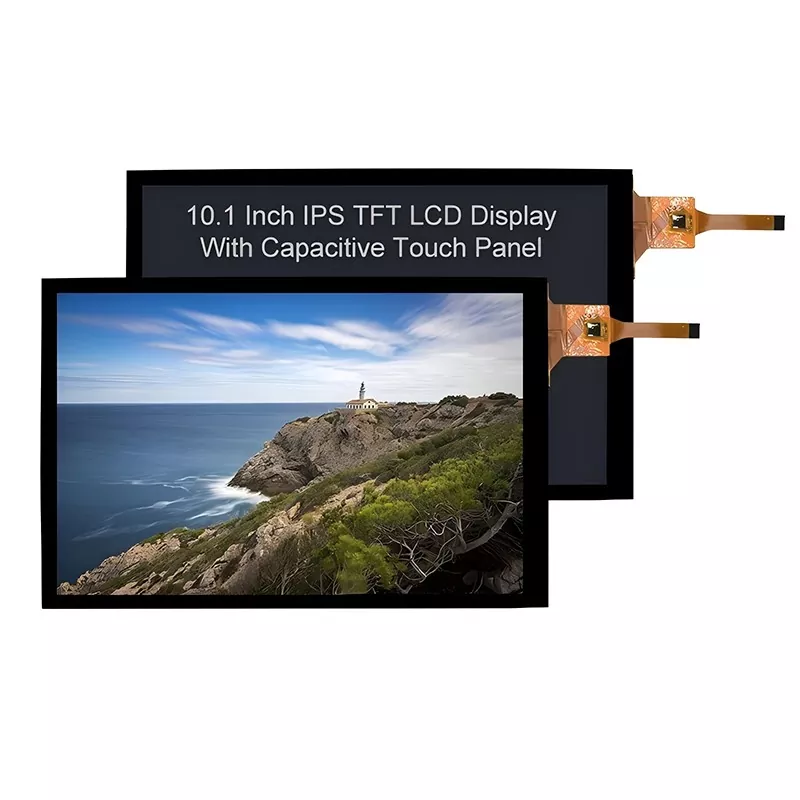

10,1 inch 800x1280 capacitive tactus tft moduli

Sicut TFT moduli late usus est in vita, manufacturers et amet sunt magis. Quid facit Vicronix 10.1 inch 800x1280 capacitive tactus tft moduli alia ex aliis manufacturers? Primo, quod habet 10,1-inch activae area (135.36mm × 216.58mm) cum DCCC × (RGB) × MCCLXXX senatus, tradens acutam imagines et supporting usque ad 16,7 decies centena. Experientia est typical claritas CCL CD / M² et altus contra rationem M: I. Secundo, illud integrates in capacitive tactus panel (CTP), quod sustinet X-punctum multi-tactus. Features High Super Superficiem (≥6h), optimum diaphanitatem (≥85%), et precise accurate (± 1.5mm centrum / ± 2.5mm obstupuerunt). Ic1011 IC. Besides, its backlight control includes PWM signal (CABC) and dedicated LED+ / LED- pins (9V LED backlight, 3S10P white LED configuration, typical lifetime from 30,000 to 50,000 hours to 50% brightness, ensuring clear visibility in all lighting conditions. In addition, it passes rigorous environmental testing including High/Low-Temperature Storage & Operation, Temperature Cycling, and High Temperature/Humidity Operation, ensuring Operatur fidelissime in latam temperatus rhoncus -10 ° C ad + L ° C et repono sub eadem dura conditionibus.

Hoc Vicronix 10.1 inch Tft modulus est idoneam ad humanum machina interfaces (HMIS), industriae potestate tabulata, portable medicinae cogitationes, test et mensurae apparatu, punctum-of-sale, summus qualitas tactus ostentationem in challenging environments.

Generalis specifications

Vxt0101yia, 19C est a tft-lcd moduli. Est composito ex TFD-LCD Panel, Coegi IC, FPC, CTP et retro lux unitas. 10.11 ¢ ¢ Display area continet DCCC x (RGB) X MCCLXXX elementa et potest ostendere usque ad 16.7m colorum. Hoc productum secundum Rohs environmental criterion ..

Note I: color tune est leviter mutata per temperatus et driving voltage.

Note II: Sine FPC et Solder.

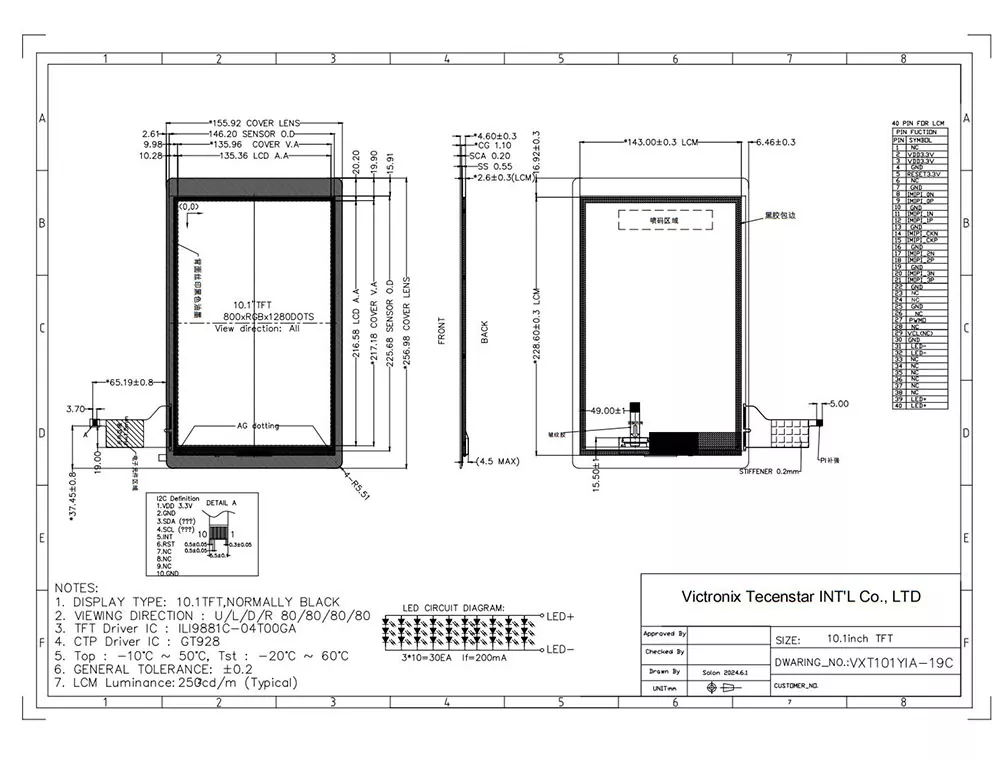

Mechanical Drawing
