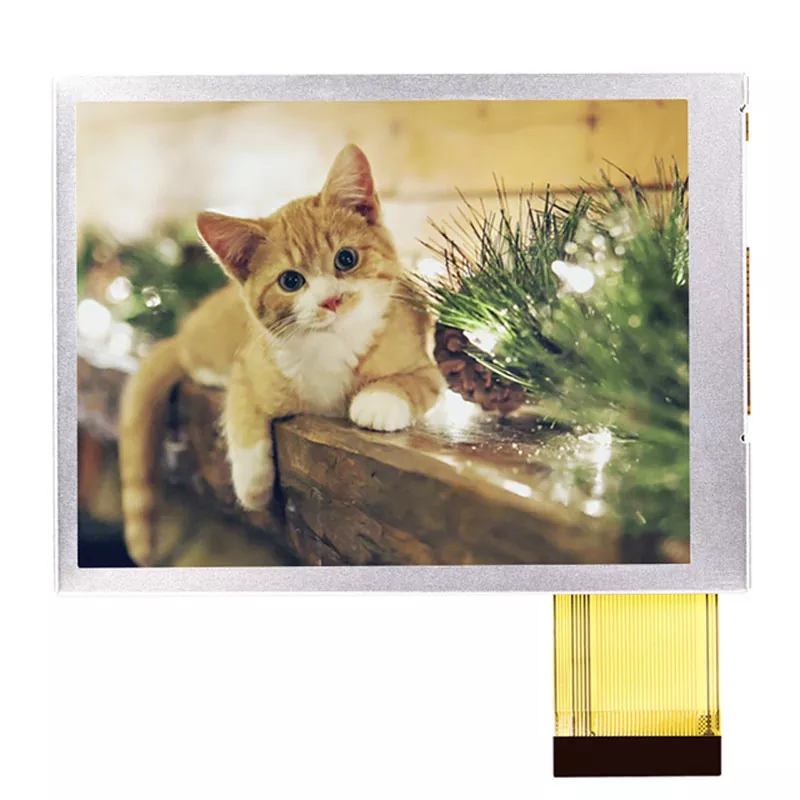

3.5 '' 480x640 Transflective IPS TFT moduli

Vicronix est professional tft moduli manufacturer et elit secundum in Sinis. Cum XVIII annos experientia in agro, nos developed a varietate exempla. Insuper ad nostram vexillum products, nos quoque offerre customized servicia in occursum nostra customers 'specifica necessitates. Hoc Victronix 3.5 '' 480x640 Transflective IPS TFT Module est summus perficientur 3.5 inch tft LCD moduli featuring provectus Transflective ipsum technology. Hoc moduli tradit eximia readability et domesticas et sub recta solis, faciens idealis ad industriae imperium, portable instrumentation, et velit apparatu.

Model:VXT350FLVH-01

Mitte Inquisitionem PDF Download

depictio producti

TFT LCD est genus liquid crystal ostentationem quod utilitas tenuis-film transistor technology ad augendae imaginem qualitas, et non habet numerosis applications in cotidianam vitae. Ut a professional tft moduli manufacturer et elit in Sina, quod facit ad Vicronix 3.5 '' 480x640 Transflective IPS TFT moduli alia ex aliis manufecters? In primo, quod offert typical claritas 150cd / M², a wide viewing angle of LXXX ° (typical) in omni directiones et contraria ratione CCC: I, ensuring optimum readability ex variis angulis. Secundo, quod integrates a backlight unitas adhibendis VI-chip alba LEDs cum typical vita de 50,000 horas (ad L% initial claritas), ensuring patet visibilis in omnibus lucentis conditionibus. Praeterea, illud features a flexibile XVIII-bit RGB parallel interface et spi control interface per SCL et SDA paxilli. In addition, is transit duram environmental temptationis, possidet altum / humilis temperatus operatio & repono, humiditas, scelerisque inpulsa, ESD (ensuring non potest agere seamlessly per extensa temperatus range (-20 ° C ° F).

Hoc 3.5 inch tft ostentationem ex Vicronix est communiter in industriae HMI Panel, Portable Medical cogitationes, testis et mensurae apparatu, Handheld Terminals, velit, System

Hoc Victronix 3.5 inch NEC Display est specimen ad industriae imperium tabulata, medicinae instrumentation, portable cogitationes, test apparatu, et quis applicationem postulantur, altus-antiphon Colo colui cultum ostentationem in challenging environments.

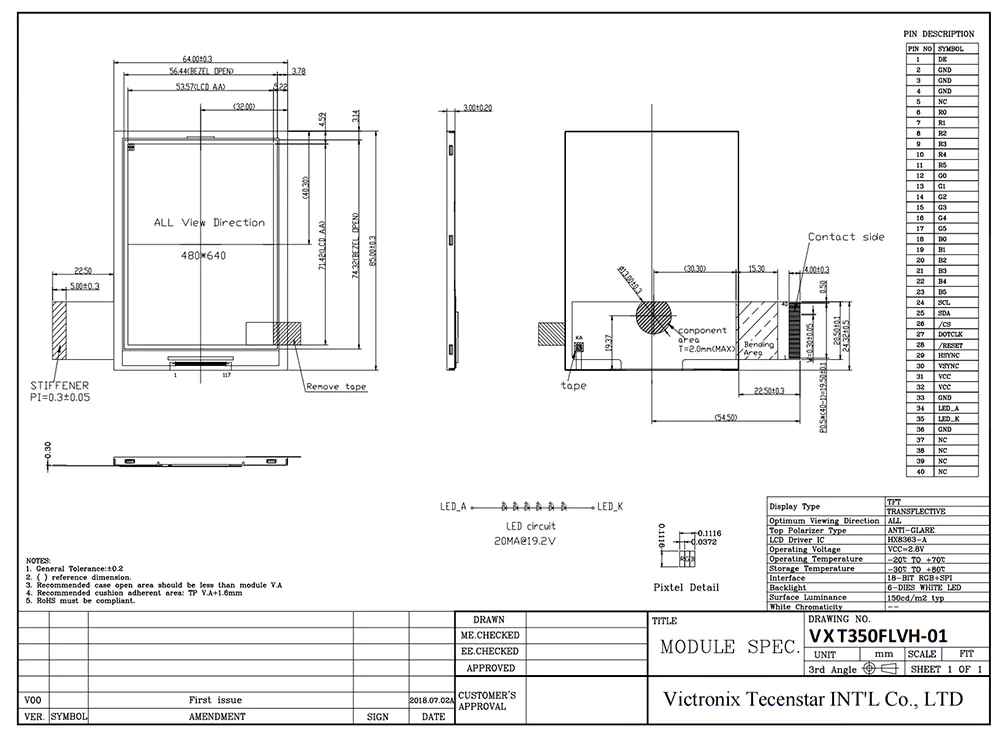

Specificatio

ltem	Contenta	Unitas
LCD Type	TFT / Transflective
Module Size (W * h * T)	LXIV * LXXXV * III	Mm
Active Size (W * h)	53,57 71,42 *	Mm
Pixel picem (W * h)	0.1216 * 0.1016	Mm
Numerum dots	CDLXXX * DCXL
ICT	Hx8363-a
Type interface	XVIII-bit RGB + spi
Top Polarizer Type	Anti-fulgor
Commendare viewing directionem	Cunctis	Horam
Grey scale inversio directionem	-	Horam
Backlight type	VI-chip albus ducitur
Tange panel type	Sincere
