3,5 inch Tianma panel tft moduli

Vxt350tqv-I 3.5 inch Tianma Panel TFT moduli est unum de vexillum TFT Modules ex Chinese TFD LCD Manufacturer Vicronix.

Model:VXT350TQV-01

Mitte Inquisitionem PDF Download

depictio producti

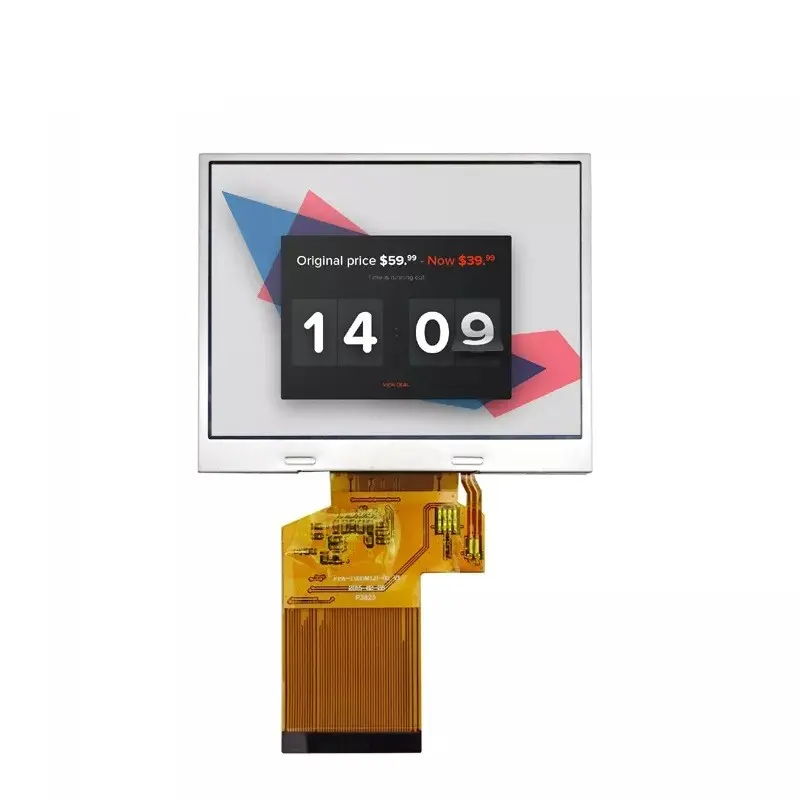

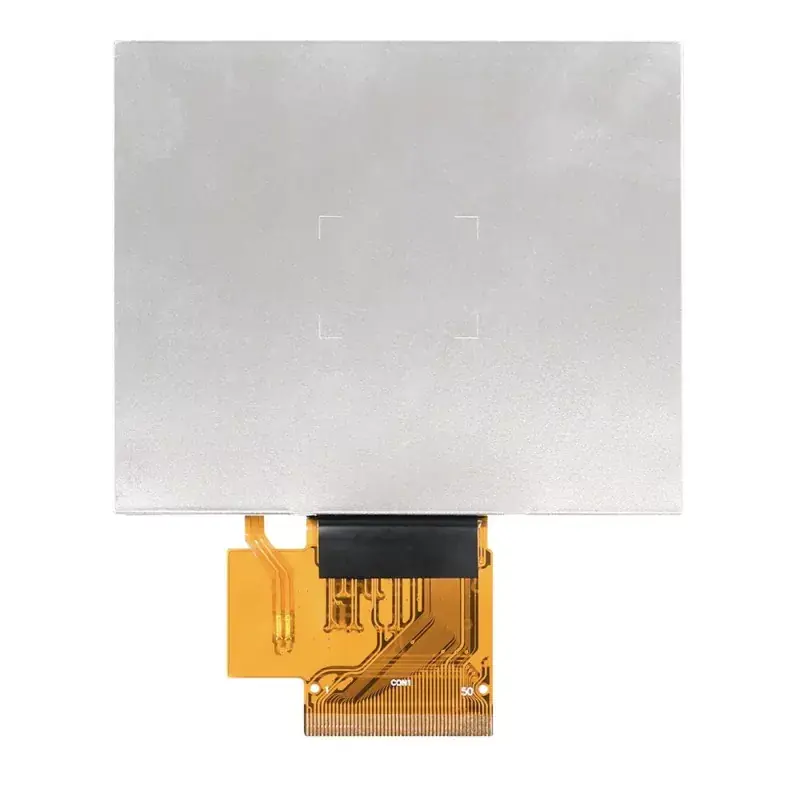

Hoc 3.5 inch Tianma Panel Tft modulus est a 320x240 elementa, IV: III aspect Ratio. Hoc incorporat NV3035gtc IC et Tianma panel. Hoc moduli sustinet 24bit RGB, et spi interfaces, et hoc tft-lcd est disposito in landscape modus cum claritas rating of CCCLXXX nits (typical valorem). Potentia copia voltage ranges ex 3.0v ad 3.6v, cum typical valorem 3.0v. Est capax operating intra temperaturis vndique a -20 ℃ ad + LXX ℃, cum ad repono temperaturis range ex -30 ℃ ad + LXXX ℃.

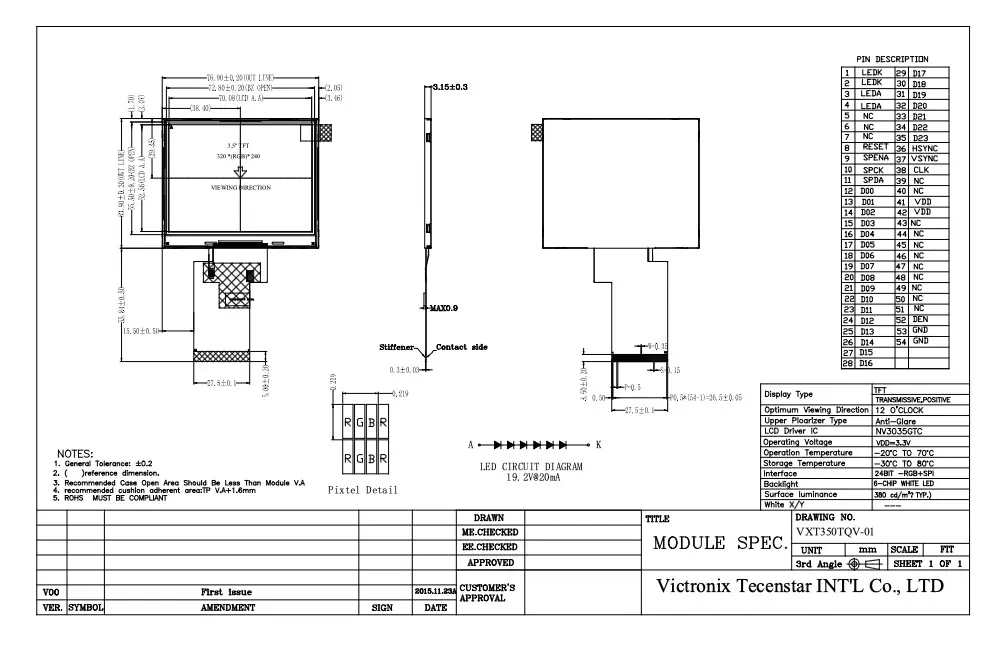

Module dimensio est 76.9 × 63.9 mm; Active area 70.08 × 52.56 mm.

Hoc 3.5inch tft est late propter video ostium telephono, Dolor Home, GPS, Camcorder, Digital Camera Application, Industrial apparatu fabrica et alia electronic products, quod requirere altum qualitas plana panel displays, optimum visual.

Specificatio

Item	Contenta	Unitas
LCD Type	TFT / transmissiva
Module Size (W * h * T)	76.90 * 63.90 * 3,15	Mm
Active Size (W * h)	70.08 * 52.56	Mm
Pixel picem (W * h)	0.219 * 0.219	Mm
Numerum dots	CCCXX * CCXL
IC Saxonia	Nv3035gtc
Type interface	RGB + spi
Top Polarizer Type	Anti-fulgor
Commendare viewing directionem	XII	Horam
Grey scale inversio directionem	VI	Horam
Colorum	16.7m
Backlight type	VI-moritur Alba DUXERIT
Tange panel type	Sincere
