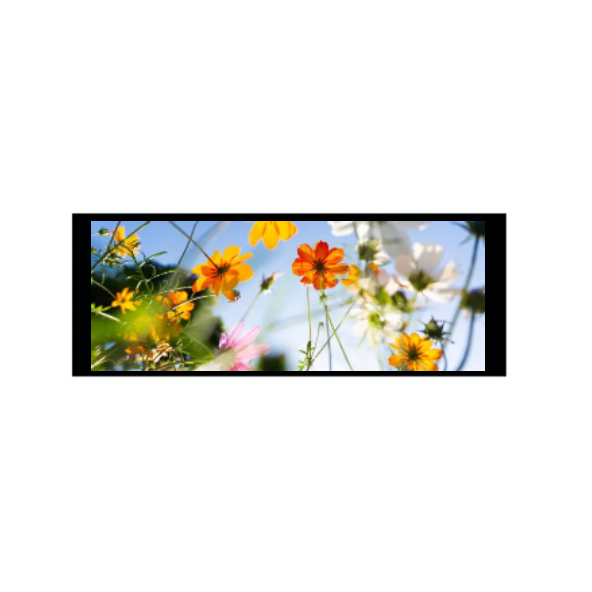

6.86 inch CDLXXX × MCCLXXX IPS TFT moduli

Hoc Vicronix 6.86 inch CDLXXX × MCCLXXX IPS TFT modulus est summus qualitas 6.86 inch tft LCD moduli disposito exposcens industriae et commercial applications. Hoc moduli features a rigidas CDLXXX × MCCLXXX resolutio, 16.7m color ostentationem, et lata viewing anguli de LXXX ° ex omnibus directiones ad providere clinets cum eximia visual claritatem. Hoc est disposito pro reliability in variis environments ut possit agere seamlessly per temperatus range of -20 ° C ad + LXX ° c. Ut professional manufacturer et elit de Tft modules in Sina, hoc Vicronix 6.86 inch Tft modulus stricte obsequitur cum Rohs environmental signa providere superior applicationem perficientur. Nos offerre a customized servitium in occursum necessitates nostras customers.

Model:VXT686BZSA-01

Mitte Inquisitionem PDF Download

depictio producti

TFT LCD est genus liquid crystal ostentationem quod utilitas tenuis-film transistor technology ad augendae imaginem qualitas, et non habet numerosis applications in cotidianam vitam. Ut a professional tft moduli manufacturer et elit in Sina, quod facit Vicronix 6.86 inch CDLXXX × MCCLXXX IPS TFT moduli alia ex aliis manufacturers? Primo, quod offert typical claritas 450cd / m², 16.7m colores, a wide viewing angle of LXXX ° (typical) in omnibus directiones, et contra rationem DCCC: I, ensuring praeclara readability ex variis angulis. Secundo, quod integrates a backlight unitas adhibendis III × IV alba LEDs cum typical vita 30,000 ad 50,000 horas (ad L% initial claritas), ensuring patet visibilis in omni lucentis conditionibus. Praeterea utitur IV-lane mipi Dsi interface in summus celeritate notitia translatio et simplicior integrationem. In addition, is transit duram environmental tentationis, possidet princeps / humilis temperatus adipiscing & operatio, temperatus cycling, humido calor (° C ° F.

Hoc 6.86-inch tft ostentationem est late in Industrial HMI, Portable Medical cogitationes, test et mensurae apparatu, Lorem Systems, Point-of-Sale (POS) terminales, et proficiebat dolor electronics.

Lcd parameter

Item	Contenta	Unitas	Nota
LCD Type	Tft	-
COLOR	16.7m
PRAECIPIUM	Cunctis	Horam
Grayscale inversio directionem	-	Horam
Operating temperatus	-20 ~ + LXX	℃
Storage temperatus	-30 ~ LXXX +	℃
Module magnitudine	6.86	inch
Active Area (W × h)	160.51x60.19	mm

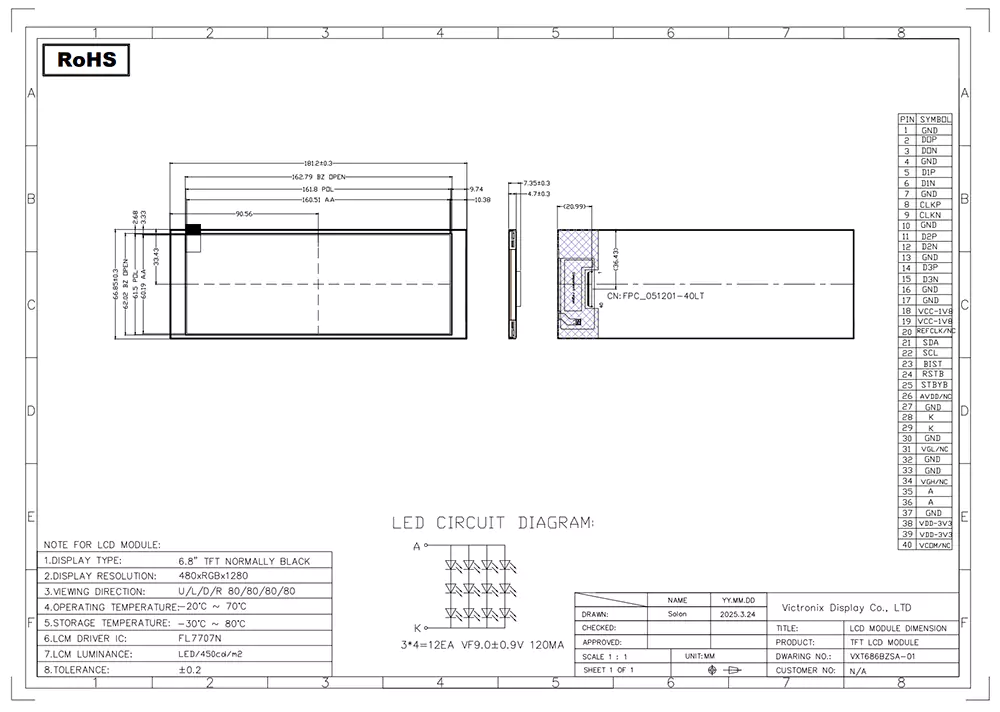

Dimensions	181.20x66.85x4.70 (7.35MAX)	mm
Numerum dots	480x1280	dots
Moderator	Fl7707n	-
Vox copia voltage	3.3	V
Backlight	3x4-LEDs (White)	PCs
Pondus	---	g
Interface	IV lane mipi	-
